STERLING™ LED PANELS

Ivan 3473

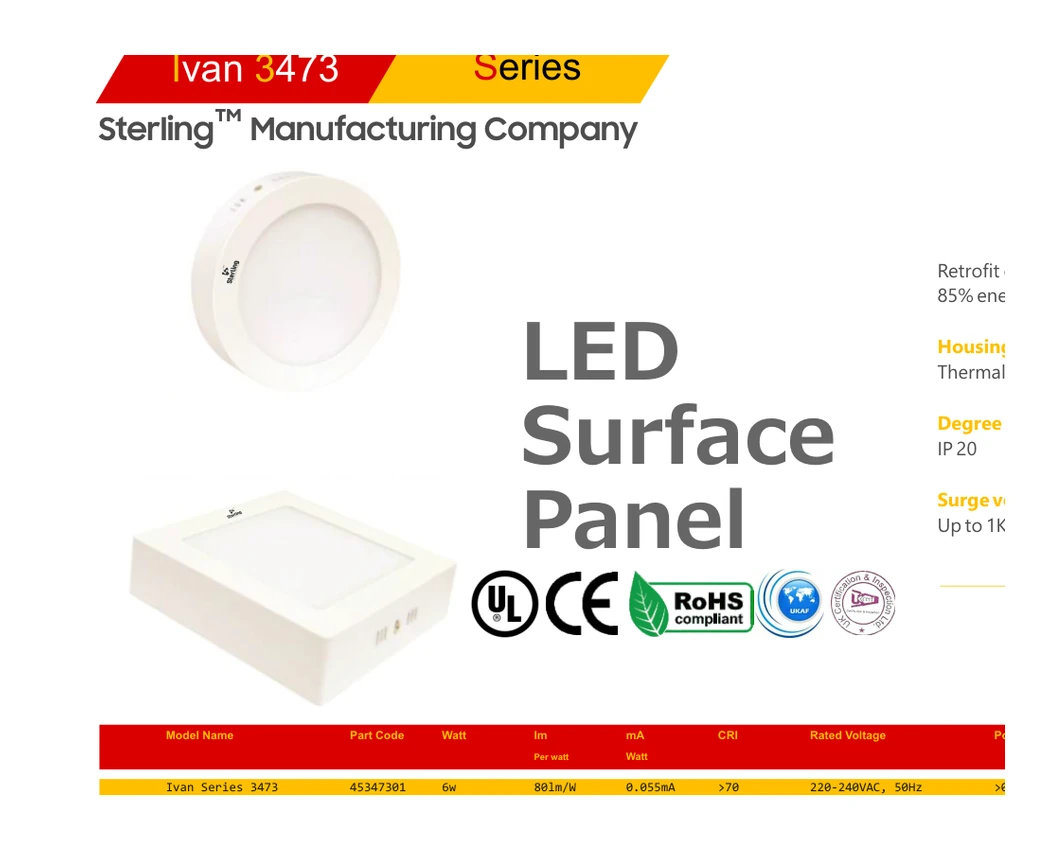

LED Surface Panel

Sterling™ Ivan 3473 surface-mounted LED panel for spaces where recessed installation is not required.

Explore Models View Catalogue
Ivan 3473
80 lm/WLuminous efficacy
220-240VAC, 50HzRated voltage
Up to 1KVSurge protection
1 YearGuarantee

Available Models

Select a wattage and click Enquire. The selected model and part code will be inserted automatically into the enquiry form.

Ivan 3473

6W

Part Code: 45347301

Efficiency80 lm/W
Current0.055mA
CRI>70
Power Factor>0.9
Dimensions38 x 98 mm
ColourWhite
Ivan 3473

12W

Part Code: 45347302

Efficiency80 lm/W
Current0.095mA
CRI>70
Power Factor>0.9
Dimensions38 x 177 mm
ColourWhite
Ivan 3473

18W

Part Code: 45347303

Efficiency80 lm/W
Current0.090mA
CRI>70
Power Factor>0.9
Dimensions38 x 225 mm
ColourWhite

Technical Specifications

WattPart CodeEfficiencyCurrentCRIVoltagePFDimensionsColourPkg.Guarantee
6W4534730180 lm/W0.055mA>70220-240VAC, 50Hz>0.938 x 98 mmWhite1001 Year
12W4534730280 lm/W0.095mA>70220-240VAC, 50Hz>0.938 x 177 mmWhite1001 Year
18W4534730380 lm/W0.090mA>70220-240VAC, 50Hz>0.938 x 225 mmWhite1001 Year
